Unwinding and gluing station

Single seat split. With brake, dual bearing steel sleeve

 The tension of paper is adjustable,paper is put balanced,also can steer to backstands.

Double-sided adhesive layer on a plastic frame, automatic cycle and glue

Save glue, simple operation, small workload, glossy glue tube, glue ,scraper can be recycled, pneumatic diaphragm pumps, system timly for glue, coating evenly

Hemming device

 Adjustment of the screw, aluminum frame,

 Simple, fast and can do the largest corner protector 110 * 110MM,

Made of steel molding round  45 #, last round chrome molding material is 45 # steel wheels, the last round chrome plated wheel diameter is about 240MM

Forming stable, durable,  bottom paper is unbreakable glossy, our own pressure system will track the  thickness of the edge protector and adding pressure, do not pack air compressor

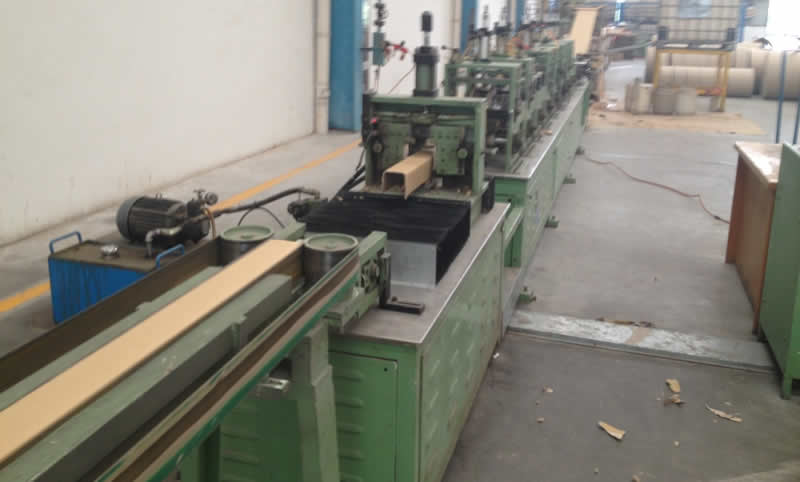

Forming system

cylinder

Fast production,good compatibility and stability,easy maintenance,

long life, low failure.

Pressure regulating valve

Manual valve

5.5KW main motor

Electronic Control

touch screen

1. Touch screen operation, keep informed of current production schedule 2、Chinese or English menu operation 。

3、Taiwan Delta precise positioning, small noise, rapid response, low failure rate.

drive

encoder

Motor-seve

Special servo cutting system

Fast cut-off station

 improve the efficiency greatly and reduce the workload, the beautiful

 Clean incision , stable performance, equipment maintenance is simple, replacing the knife is simple, convenient, fast, safe and less waste, can cut the largest edge protector  110 * 110mm .

Linear slides

Mechanical structure

international square tube

Reinforced frame structure design, effectively reduce the mechanical vibration and  noise

10MM thick steel plate

Improve the mechanical life, all polished side panels

Production speed

Speed can be 25 meters per minute, length of corner protector can be 50MM

Production range

The minimum unilateral width is 25MM, maximum unilateral width is 110MM, the minimum thickness is two piece of  450G bobbin paper and one piece of 140G kraft paper ,the maximum thickness is 7MM. It can produces a wide range of side products, and  size is standard, screw adjustment

Cutting length

50-9000mm

Cutting precision

±1.5mm

The rated voltage

380V、50Hz

Total power

8.5KW,Host motors, servo motors cut

Size of the equipment

Length = Host (8M + 2.4M) \ glue frame 3M \ paper holder 12M, total length 27.4M, For printing plus one meter wide and 0.8 meters, 1.8 meters high

This device and a slitting machine equipped with a compressor totaling 3KW, two air connectors
